Product Code

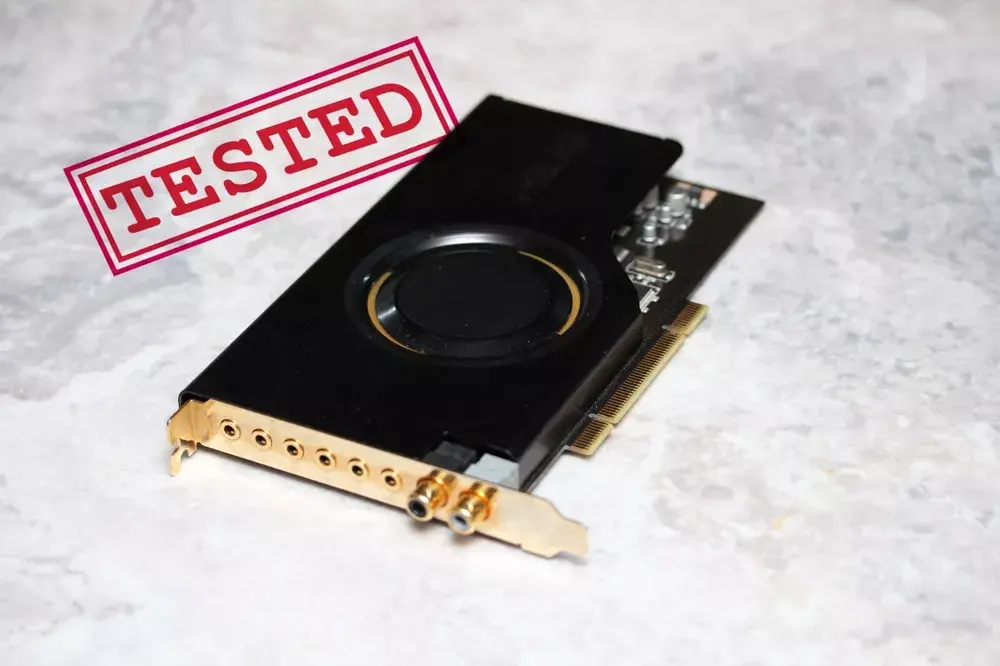

XONAR_D2/PM/A

Audio Performance

Output Signal-to-Noise Ratio (A-Weighted):

118dB for all channels dB

Input Signal-to-Noise Ratio (A-Weighted):

118 dB

Output THD+N at 1kHz:

0.0004% (-108dB)

Input THD+N at 1kHz:

0.0004% (-108dB)

Frequency Response (-3dB, 24-bit/96kHz input):

<10Hz to 46kHz (for all channels)

Frequency Response (-3dB, 24-bit/192kHz input):

<10Hz to 46kHz (for all channels)

Output/Input Full-Scale Voltage

2 Vrms (5.65 Vp-p)

Sample Rate Conversion Quality:

Almost lossless, high-fidelity floating-point filters, which has:

-140dB THD+N (typical value for 44.1K->48KHz, 24bit)

-145dB Dynamic Range (typical value for 44.1K->48KHz, 24bit)

Main Chipset

Audio Processor:

ASUS AV200 High-Definition Sound Processor (Max. 192KHz/24bit)

24-bit D-A Converter of Digital Sources:

Burr-Brown PCM1796 *4 (123dB SNR, Max. 192kHz/24bit)

24-bit A-D Converter for Analog Inputs:

Cirrus-Logic CS5381* 1 (120dB SNR, Max. 192kHz/24bit)

Sample Rate and Resolution

Analog Playback Sample Rate and Resolution:

44.1K/48K/96K/192KHz @ 16/24bit

Analog Recording Sample Rate and Resolution:

44.1K/48K/96K/192KHz @ 16/24bit

S/PDIF Digital Output:

Dolby Digital, DTS, WMA-Pro

S/PDIF Digital Input:

44.1K/48K/96K/192KHz @ 16/24bit

ASIO 2.0 Driver Support:

44.1K/48K/96K/192KHz @ 16/24bit

I/O Ports

Analog Output Jack:

3.50mm mini jack *4 (Front/Side/Center-Subwoofer/Back)

Analog Input Jack:

3.50mm mini jack *2 (Line-In/Mic-In)

Other line-level analog input (for CD-IN/TV Tuner):

CD-In, Aux-In (4-pin header on the card)

Digital S/PDIF Output:

Coaxial and High-bandwidth Optical Combo Connector

Supports 192KHz/24bit

Digital S/PDIF Input:

Coaxial and High-bandwidth Optical Combo Connector

Supports 192KHz/24bit
