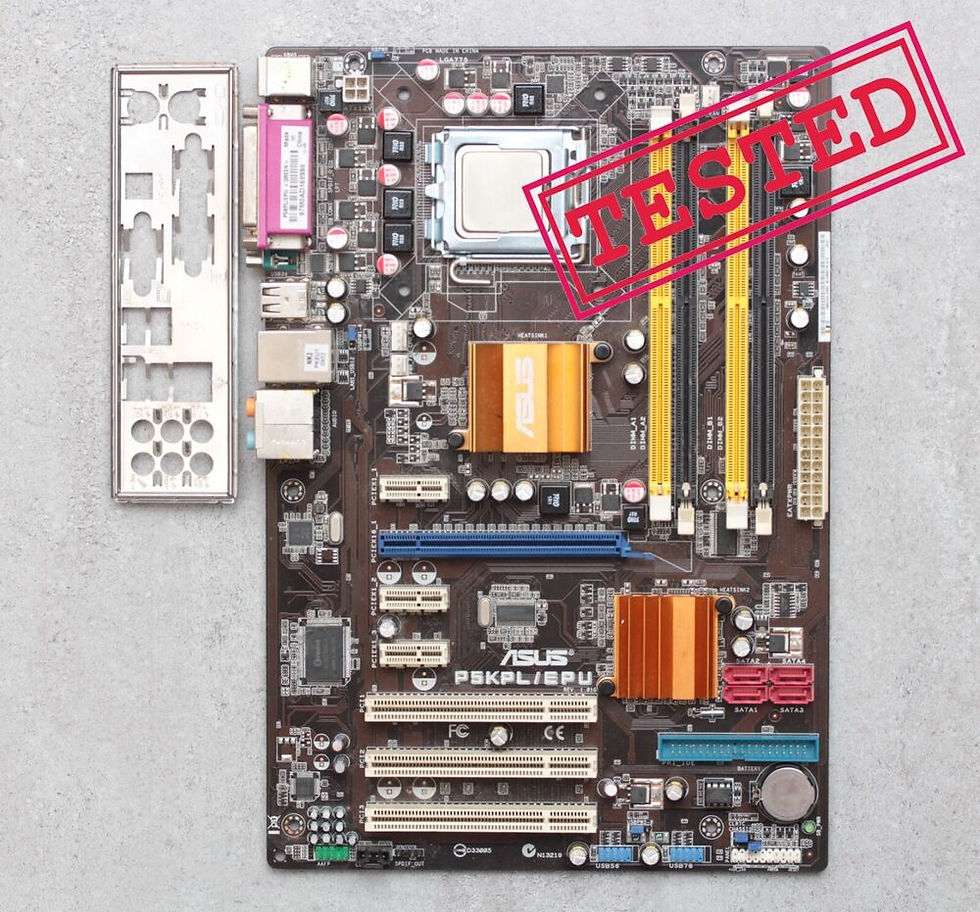

TESTED/WORKING PERFECT. Motherboard socket 775 / I/O Shield/ CPU Q7400
CPU:
Intel® Socket 775 Core™2 Quad/Core™2 Extreme/Core™2 Duo/Celeron® E1000 Series and 400 Series CPU Support Intel® 45nm Multi-Core CPU
Intel® Hyper-Threading Technology ready
Support Enhanced Intel SpeedStep Technology (EIST)
Chipset:
Intel® G31 /ICH7
Front Side Bus:
1600(O.C)/1333/1066/800 MHz
Memory:
4 x240-pin DIMM, Max. 4 GB, DDR2 1066(O.C.)/800/667 Memory
Dual Channel memory architecture
Expansion Slots:
1 x PCIe x16
3 x PCIe x1
3 x PCI
Storage:
Intel ICH7 controller
1 xUltraDMA 100/66
4 xSATA 3 Gb/s ports
LAN:
RTL8111C-VCP-GR Gb LAN
Audio ALC887 High Definition Audio 8 -Channel CODEC
Audio Jack-detect/Multi-Streaming Technology
Support optical S/PDIF output
USB:
8 USB 2.0 ports
ASUS Unique Features:
ASUS CrashFreeBIOS3
ASUS EPU
ASUS Express Gate
ASUS EZ Flash2
ASUS Q-Fan
ASUS MyLogo2
Overclocking Features:
SFS (Stepless Frequency Selection)
- FSB tuning from 133MHz to 600MHz at 1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)
Back Panel I/O Ports:
1 x Parallel
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x S/PDIF Out (Optical)
1 x LAN(RJ45) port
4 x USB 2.0/1.1
1 x COM port
8 -Channel Audio I/O
Internal I/O Connectors:
2 x USB connectors support additional 4 USB 2.0 ports
1 x IDE connector
1 x S/PDIF Out connector
1 x Azalia High definition Analog Front panel Audio connector
1 x Chassis Intrusion connector
1 x System Panel connector
1 x CPU/ 1 x Chassis/1 x Power FAN connectors
1 x CD audio in connector
1 x 24-pin EPS12V Power connector
1 x 4-pin ATX 12V Power connector
BIOS:
8 Mb Flash ROM
AMI BIOS, Special H/W write protection, PnP, DMI v2.0, WfM2.0, SMBIOS v2.5, ACPI v2.0a
Manageability:
WOL by PME,WOR by PME,WOR by Ring
O/S Compatibility Windows Vista
Windows XP
LINUX : RedHat, SuSe, Fedora
Accessories:
User's manual
1 x I/O Shield
1 x UltraDMA 133/100/66 cable
1 x SATA cable
Support:
Disc Drivers
ASUS PC Probe II
ASUS LiveUpdate Utility
Form Factor:
ATX Form Factor
12 inch x 8.2 inch ( 30.5 cm x 20.8 cm )
