Manufacturer:

SAPPHIRE

Model:

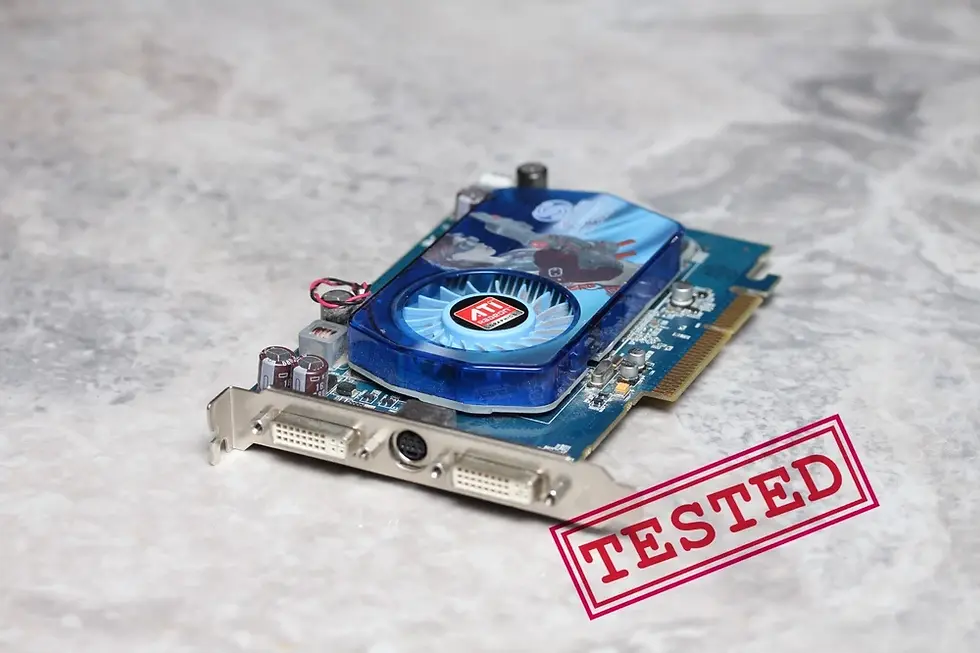

Radeon HD 3650 512MB DDR2 AGP

Based on:

ATI Radeon HD 3650 DDR2

Target market segment:

Desktop

Die name:

RV635

Architecture:

Unified Superscalar Shader Architecture

Fabrication process:

55 nm

Transistors:

378 million

Bus interface:

AGP 8x

Frequency

Graphics clock:

600 MHz

Memory specifications

Memory size:

512 MB

Memory type:

DDR2

Memory clock:

400 MHz

Memory clock (effective):

800 MHz

Memory interface width:

128-bit

Memory bandwidth:

12.8 GB/s

Cores / Texture

Color ROPs:

4

Stream processors:

120

Texture units:

8

Texture fetches / clock cycle:

Up to 40

Textures/pixel:

Up to 128

RAMDACs:

400 MHz

Decoders:

DivX H.264 MPEG 1 MPEG-2 VC-1

Electric characteristics

Maximum power draw:

65 Watt

Video features

Multi-monitor:

Up to 2 displays

Maximum digital resolution:

2560 x 1600

Maximum DVI resolution:

2560 x 1600

Maximum HDMI resolution:

1920 x 1200

Maximum VGA resolution:

2048 x 1536

Anti-Aliasing technologies:

24 x CFAA 8 x MSAA Adaptive MSAA & SSAA Temporal AA

HDMI:

Yes

HDMI version:

1.2

Performance

Pixel fill rate:

2.4 Gigapixels/s

Texture fill rate:

4.8 Gigatexels/s

Single presision compute power:

144 GFLOPS

Double precision compute power:

n/a

External connectors

Standard display connectors:

2 x Dual-Link DVI-I S-Video

Audio input for HDMI:

Yes

Dimensions

Width:

Single-Slot

Other features / Support

Other features:

ATI/AMD PowerPlay HDCP High Dynamic Range (HDR) Support

OpenGL support:

3.3

DirectX support:

10.1

Shader model:

4.1

Windows driver support:

Windows 7 Windows Vista Windows XP
