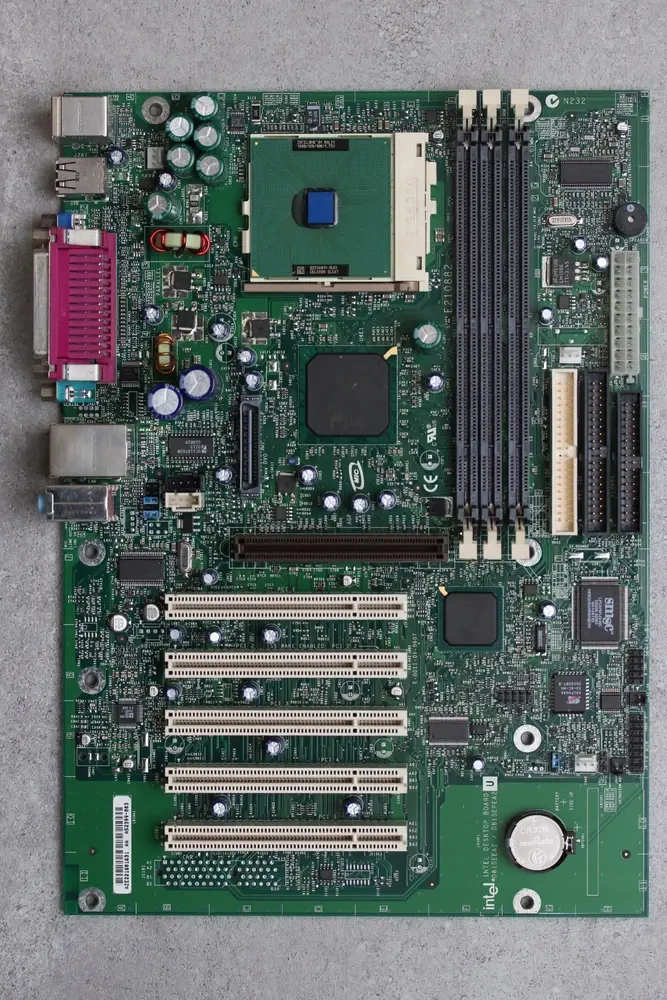

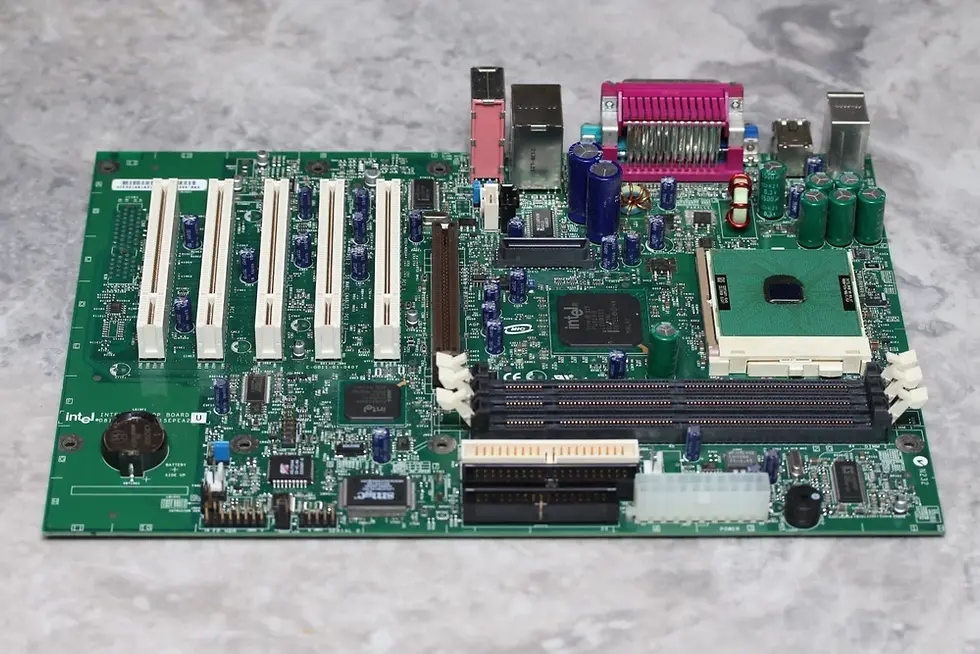

TESTED/WORKING PERFECT. With Celeron 1000 MHz & I/O shield

Chipset Intel 815E (Solano-2)
Socket Socket 370 (PGA370)
FSB speeds 66MHz100MHz133MHz
Form factor ATX (max 305 x 244 mm)
Dimensions 294 mm x 208 mm
Max VRAM size 4MB
Cache None/Integrated in the CPU
Max RAM size 512MB
RAM type SDR UDIMM
PSU connector ATX 1.x (20-pin ATX)
I/O ports
1x 3.5mm Audio Combo
1x Floppy interface
2x IDE interface
1x Intel DVO port
1x PS/2 keyboard
1x PS/2 mouse
1x Parallel
1x RJ-45 LAN
2x Serial
4x USB 1.x
1x VGA
Expansion slots
5x 32-bit PCI
1x CNR
1x Universal AGP
